Documentation for JSON Schema /properties/Orders/items[0]/properties/Containers/items[0] in ASN

Property Name	Type	Description
ContainerId	string	A String value where *length <= 25* Description : Shipper container ID
ShipperTrackingNumber	string	A String value where *length <= 25* Description : Shipper tracking number
Length	number	A Number value
Width	number	A Number value
Height	number	A Number value
DimUOM	string	DimUOM (common.json)
Weight	number	A Number value
WeightUOM	string	WeightUOM (common.json)
Item	array	Item (asn.json)

Source

{
    "type": "object",
    "additionalProperties": false,
    "properties": {
        "ContainerId": {
            "type": "string",
            "description": "Shipper container ID",
            "maxLength": 25
        },
        "ShipperTrackingNumber": {
            "type": "string",
            "description": "Shipper tracking number",
            "maxLength": 25
        },
        "Length": {
            "type": "number"
        },
        "Width": {
            "type": "number"
        },
        "Height": {
            "type": "number"
        },
        "DimUOM": {
            "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/DimUOM"
        },
        "Weight": {
            "type": "number"
        },
        "WeightUOM": {
            "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/WeightUOM"
        },
        "Item": {
            "type": "array",
            "minItems": 1,
            "items": {
                "type": "object",
                "additionalProperties": {},
                "properties": {
                    "ItemId": {
                        "type": "object",
                        "additionalProperties": {},
                        "properties": {
                            "BarCodeId": {
                                "type": "string",
                                "maxLength": 14
                            },
                            "BarCodeType": {
                                "type": "string",
                                "enum": [
                                    "GTIN-12",
                                    "GTIN-13",
                                    "GTIN-14",
                                    "PartNumber"
                                ]
                            },
                            "BuyerItemId": {
                                "type": "string",
                                "maxLength": 25
                            },
                            "BuyerItemDesc": {
                                "type": "string",
                                "maxLength": 50
                            },
                            "SupplierItemId": {
                                "type": "string",
                                "maxLength": 25
                            },
                            "SupplierItemDesc": {
                                "type": "string",
                                "maxLength": 50
                            }
                        },
                        "required": [
                            "BarCodeId",
                            "BarCodeType",
                            "BuyerItemId",
                            "SupplierItemId"
                        ]
                    },
                    "POLineNbr": {
                        "type": "integer"
                    },
                    "ItemQty": {
                        "type": "object",
                        "additionalProperties": {},
                        "properties": {
                            "Qty": {
                                "type": "number"
                            },
                            "ItemUOMCode": {
                                "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                            },
                            "ItemUOMDesc": {
                                "type": "string",
                                "maxLength": 15
                            }
                        },
                        "required": [
                            "Qty"
                        ]
                    },
                    "ItemAttrs": {
                        "type": "object",
                        "additionalProperties": {},
                        "properties": {
                            "SerialNbrs": {
                                "type": "array",
                                "items": {
                                    "type": "string",
                                    "description": "Item serial number"
                                }
                            },
                            "StdPack": {
                                "type": "object",
                                "additionalProperties": {},
                                "properties": {
                                    "ICQtyPerUOM": {
                                        "type": "number",
                                        "description": "Inner Carton quantity per Unit of Measure"
                                    },
                                    "ICUOM": {
                                        "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                                    },
                                    "StdPackType": {
                                        "type": "string"
                                    }
                                }
                            },
                            "StdContainer": {
                                "type": "object",
                                "additionalProperties": {},
                                "properties": {
                                    "MCQtyPerUOM": {
                                        "type": "number",
                                        "description": "Master Carton quantity per Unit of Measure"
                                    },
                                    "MCUOM": {
                                        "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                                    },
                                    "StdContainerType": {
                                        "type": "string"
                                    }
                                }
                            }
                        }
                    }
                },
                "required": [
                    "ItemId",
                    "POLineNbr",
                    "ItemQty"
                ]
            }
        }
    }
}

https://standards.namm.org/schema/2020.1/asn.json (146:38)

JSON Schema /properties/Orders/items[0]/properties/Containers/items[0]

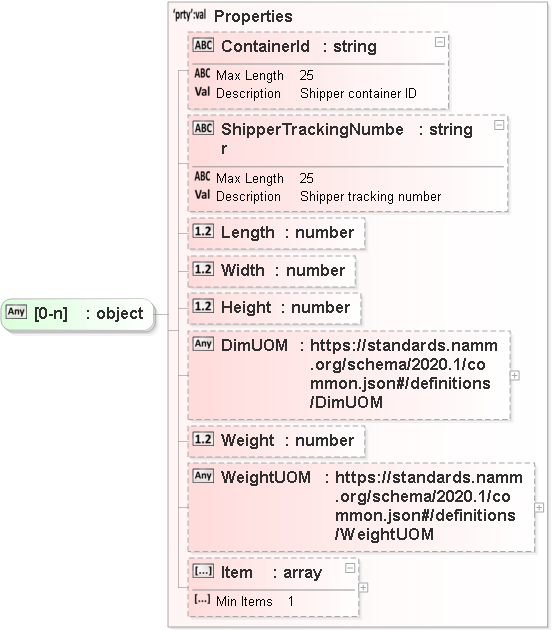

Diagram
