Documentation for JSON Schema /properties/Orders/items[0]/properties/Containers/items[0]/properties/Item/items[0] in ASN

Property Name	Type	Description
ItemId	object	ItemId (asn.json)
POLineNbr	integer	A Integer value
ItemQty	object	ItemQty (asn.json)
ItemAttrs	object	ItemAttrs (asn.json)
Any Property	any	Any type of value (boolean, integer, number, string, object, array or null).

Source

{
    "type": "object",
    "additionalProperties": {},
    "properties": {
        "ItemId": {
            "type": "object",
            "additionalProperties": {},
            "properties": {
                "BarCodeId": {
                    "type": "string",
                    "maxLength": 14
                },
                "BarCodeType": {
                    "type": "string",
                    "enum": [
                        "GTIN-12",
                        "GTIN-13",
                        "GTIN-14",
                        "PartNumber"
                    ]
                },
                "BuyerItemId": {
                    "type": "string",
                    "maxLength": 25
                },
                "BuyerItemDesc": {
                    "type": "string",
                    "maxLength": 50
                },
                "SupplierItemId": {
                    "type": "string",
                    "maxLength": 25
                },
                "SupplierItemDesc": {
                    "type": "string",
                    "maxLength": 50
                }
            },
            "required": [
                "BarCodeId",
                "BarCodeType",
                "BuyerItemId",
                "SupplierItemId"
            ]
        },
        "POLineNbr": {
            "type": "integer"
        },
        "ItemQty": {
            "type": "object",
            "additionalProperties": {},
            "properties": {
                "Qty": {
                    "type": "number"
                },
                "ItemUOMCode": {
                    "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                },
                "ItemUOMDesc": {
                    "type": "string",
                    "maxLength": 15
                }
            },
            "required": [
                "Qty"
            ]
        },
        "ItemAttrs": {
            "type": "object",
            "additionalProperties": {},
            "properties": {
                "SerialNbrs": {
                    "type": "array",
                    "items": {
                        "type": "string",
                        "description": "Item serial number"
                    }
                },
                "StdPack": {
                    "type": "object",
                    "additionalProperties": {},
                    "properties": {
                        "ICQtyPerUOM": {
                            "type": "number",
                            "description": "Inner Carton quantity per Unit of Measure"
                        },
                        "ICUOM": {
                            "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                        },
                        "StdPackType": {
                            "type": "string"
                        }
                    }
                },
                "StdContainer": {
                    "type": "object",
                    "additionalProperties": {},
                    "properties": {
                        "MCQtyPerUOM": {
                            "type": "number",
                            "description": "Master Carton quantity per Unit of Measure"
                        },
                        "MCUOM": {
                            "$ref": "https://standards.namm.org/schema/2020.1/common.json#/definitions/QtyUOM"
                        },
                        "StdContainerType": {
                            "type": "string"
                        }
                    }
                }
            }
        }
    },
    "required": [
        "ItemId",
        "POLineNbr",
        "ItemQty"
    ]
}

https://standards.namm.org/schema/2020.1/asn.json (181:50)

JSON Schema /properties/Orders/items[0]/properties/Containers/items[0]/properties/Item/items[0]

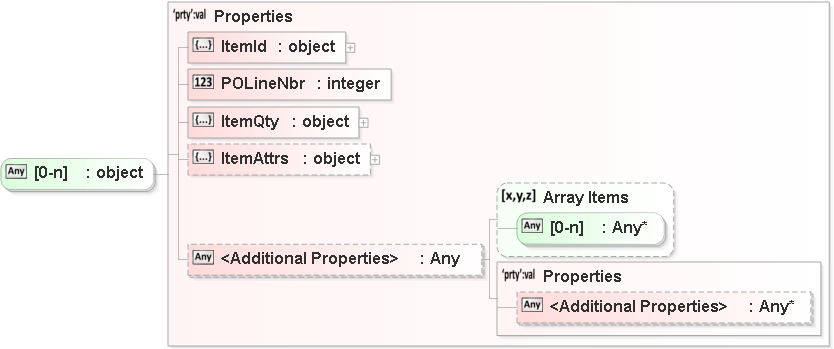

Diagram

Value

Object

Properties

Source

References
