JSON Schema Definition 'Address'

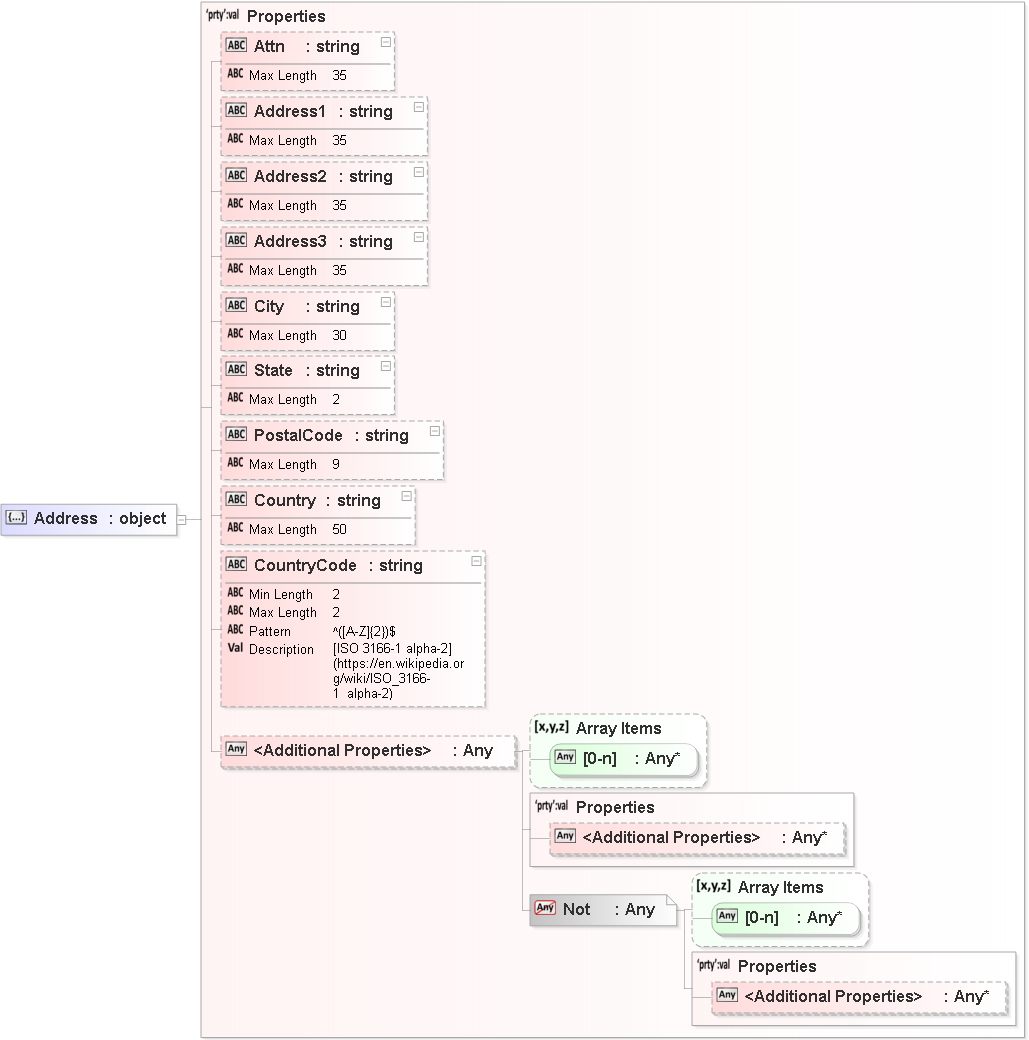

Diagram

Value

Object

Properties

Property Name	Type	Description
Attn	string	A String value where *length <= 35*
Address1	string	A String value where *length <= 35*
Address2	string	A String value where *length <= 35*
Address3	string	A String value where *length <= 35*
City	string	A String value where *length <= 30*
State	string	A String value where *length <= 2*
PostalCode	string	A String value where *length <= 9*
Country	string	A String value where *length <= 50*
CountryCode	string	A String value where *length >= 2* and *length <= 2* and *value matches regex '^([A-Z]{2})$'* Description : [ISO 3166-1 alpha-2](https://en.wikipedia.org/wiki/ISO_3166-1_alpha-2)
Additional Properties	Type	Description
Any Property	any	/definitions/Address/additionalProperties (common.json)

Source

"Address": {
    "type": "object",
    "additionalProperties": {
        "not": {}
    },
    "properties": {
        "Attn": {
            "type": "string",
            "maxLength": 35
        },
        "Address1": {
            "type": "string",
            "maxLength": 35
        },
        "Address2": {
            "type": "string",
            "maxLength": 35
        },
        "Address3": {
            "type": "string",
            "maxLength": 35
        },
        "City": {
            "type": "string",
            "maxLength": 30
        },
        "State": {
            "type": "string",
            "maxLength": 2
        },
        "PostalCode": {
            "type": "string",
            "maxLength": 9
        },
        "Country": {
            "type": "string",
            "maxLength": 50
        },
        "CountryCode": {
            "type": "string",
            "description": "[ISO 3166-1 alpha-2](https://en.wikipedia.org/wiki/ISO_3166-1_alpha-2)",
            "maxLength": 2,
            "minLength": 2,
            "pattern": "^([A-Z]{2})$"
        }
    },
    "required": []
}

https://standards.namm.org/schema/2020.1/common.json (10:21)

References

Documentation for Purchase Order
Generated using Liquid Studio 2019 - Data Designer Edition 17.1.14.9682
