JSON Schema File
ID
https://standards.namm.org/schema/2020.1/common.json
Title
Common Schema Definitions
Description
Common Shared Objects used by reference

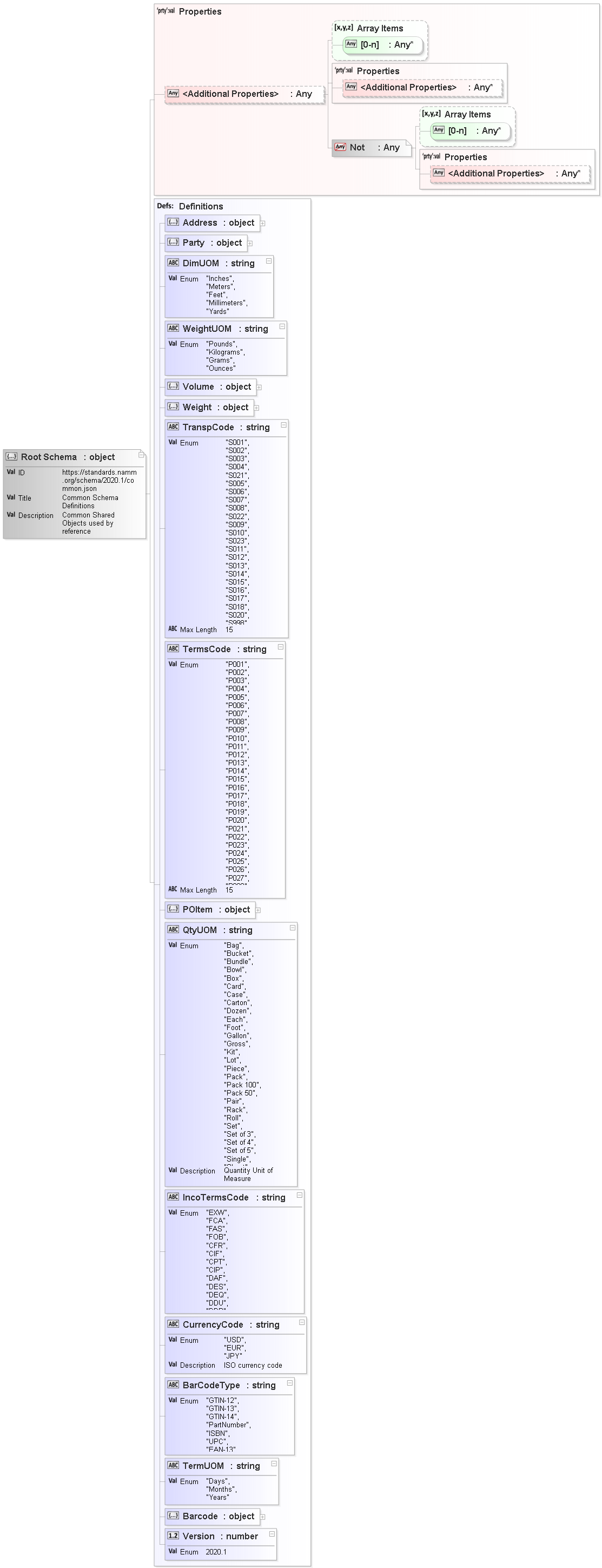

Diagram
Value
Object
Properties
| Additional Properties | Type | Description |
|---|---|---|
| Any Property | any | /additionalProperties (common.json) |
Definitions
| Name | Type |
|---|---|
| Address (common.json) | object |
| Party (common.json) | object |
| DimUOM (common.json) | string |
| WeightUOM (common.json) | string |
| Volume (common.json) | object |
| Weight (common.json) | object |
| TranspCode (common.json) | string |
| TermsCode (common.json) | string |
| POItem (common.json) | object |
| QtyUOM (common.json) | string |
| IncoTermsCode (common.json) | string |
| CurrencyCode (common.json) | string |
| BarCodeType (common.json) | string |
| TermUOM (common.json) | string |
| Barcode (common.json) | object |
| Version (common.json) | number |
Source
{
"$schema": "http://json-schema.org/draft-07/schema#",
"$id": "https://standards.namm.org/schema/2020.1/common.json",
"type": "object",
"title": "Common Schema Definitions",
"description": "Common Shared Objects used by reference",
"additionalProperties": {
"not": {}
},
"definitions": {
"Address": {
"type": "object",
"additionalProperties": {
"not": {}
},
"properties": {
"Attn": {
"type": "string",
"maxLength": 35
},
"Address1": {
"type": "string",
"maxLength": 35
},
"Address2": {
"type": "string",
"maxLength": 35
},
"Address3": {
"type": "string",
"maxLength": 35
},
"City": {
"type": "string",
"maxLength": 30
},
"State": {
"type": "string",
"maxLength": 2
},
"PostalCode": {
"type": "string",
"maxLength": 9
},
"Country": {
"type": "string",
"maxLength": 50
},
"CountryCode": {
"type": "string",
"description": "[ISO 3166-1 alpha-2](https://en.wikipedia.org/wiki/ISO_3166-1_alpha-2)",
"maxLength": 2,
"minLength": 2,
"pattern": "^([A-Z]{2})$"
}
},
"required": []
},
"Party": {
"type": "object",
"additionalProperties": {
"not": {}
},
"properties": {
"PartyId": {
"type": "string",
"maxLength": 50
},
"PartyIdType": {
"type": "string",
"enum": [
"GLN",
"NAMM"
]
},
"Name": {
"type": "string",
"maxLength": 35
},
"Address": {
"$ref": "#/definitions/Address"
}
},
"required": [
"PartyId",
"PartyIdType",
"Address"
]
},
"DimUOM": {
"type": "string",
"enum": [
"Inches",
"Meters",
"Feet",
"Millimeters",
"Yards"
]
},
"WeightUOM": {
"type": "string",
"enum": [
"Pounds",
"Kilograms",
"Grams",
"Ounces"
]
},
"Volume": {
"type": "object",
"additionalProperties": {},
"properties": {
"VolumeValue": {
"type": "number"
},
"VolumeUOMCode": {
"type": "string",
"maxLength": 5
},
"VolumeUOMDesc": {
"type": "string",
"maxLength": 15
}
}
},
"Weight": {
"type": "object",
"additionalProperties": {},
"properties": {
"WeightValue": {
"type": "number"
},
"WeightUOMCode": {
"type": "string",
"maxLength": 5
},
"WeightUOMDesc": {
"type": "string",
"maxLength": 15
}
}
},
"TranspCode": {
"type": "string",
"enum": [
"S001",
"S002",
"S003",
"S004",
"S021",
"S005",
"S006",
"S007",
"S008",
"S022",
"S009",
"S010",
"S023",
"S011",
"S012",
"S013",
"S014",
"S015",
"S016",
"S017",
"S018",
"S020",
"S998",
"S999"
],
"maxLength": 15
},
"TermsCode": {
"type": "string",
"enum": [
"P001",
"P002",
"P003",
"P004",
"P005",
"P006",
"P007",
"P008",
"P009",
"P010",
"P011",
"P012",
"P013",
"P014",
"P015",
"P016",
"P017",
"P018",
"P019",
"P020",
"P021",
"P022",
"P023",
"P024",
"P025",
"P026",
"P027",
"P998",
"P999"
],
"maxLength": 15
},
"POItem": {
"type": "object",
"additionalProperties": {
"not": {}
},
"properties": {
"POLineNbr": {
"type": "integer",
"minimum": 1
},
"SupplierItemId": {
"type": "string",
"maxLength": 25
},
"BuyerItemId": {
"type": "string",
"maxLength": 25
},
"BuyerItemDesc": {
"type": "string",
"maxLength": 50
},
"Qty": {
"type": "number"
},
"QtyUOM": {
"type": "string",
"enum": [
"BAG",
"BKT",
"BND",
"BOWL",
"BX",
"CRD",
"CM",
"CS",
"CTN",
"DZ",
"EA",
"FT",
"GAL",
"GROSS",
"IN",
"KIT",
"LOT",
"M",
"MM",
"PC",
"PK",
"PK100",
"PK50",
"PR",
"RACK",
"RL",
"SET",
"SET3",
"SET4",
"SET5",
"SGL",
"SHT",
"SQFT",
"TUBE",
"YD"
]
},
"UCValue": {
"type": "number"
},
"UCCurrencyCode": {
"type": "string",
"description": "ISO currency code",
"enum": [
"USD",
"EUR",
"JPY"
]
},
"RetailValue": {
"type": "number"
},
"RetailCurrencyCode": {
"type": "string",
"description": "ISO currency code",
"enum": [
"USD",
"EUR",
"JPY"
]
},
"ICQtyPerUOM": {
"type": "number"
},
"ICUOM": {
"type": "string",
"maxLength": 5
},
"MCQtyPerUOM": {
"type": "number"
},
"MCUOM": {
"type": "string",
"maxLength": 5
},
"BarCodeId": {
"type": "string",
"maxLength": 14
},
"BarCodeType": {
"type": "string",
"enum": [
"GTIN-12",
"GTIN-13",
"GTIN-14",
"PartNumber"
]
},
"ShipTo": {
"$ref": "#/definitions/Party"
}
},
"required": [
"POLineNbr",
"BuyerItemId",
"Qty",
"QtyUOM",
"UCValue",
"UCCurrencyCode",
"BarCodeId",
"BarCodeType"
]
},
"QtyUOM": {
"type": "string",
"description": "Quantity Unit of Measure",
"enum": [
"Bag",
"Bucket",
"Bundle",
"Bowl",
"Box",
"Card",
"Case",
"Carton",
"Dozen",
"Each",
"Foot",
"Gallon",
"Gross",
"Kit",
"Lot",
"Piece",
"Pack",
"Pack 100",
"Pack 50",
"Pair",
"Rack",
"Roll",
"Set",
"Set of 3",
"Set of 4",
"Set of 5",
"Single",
"Sheet",
"Tube"
]
},
"IncoTermsCode": {
"type": "string",
"enum": [
"EXW",
"FCA",
"FAS",
"FOB",
"CFR",
"CIF",
"CPT",
"CIP",
"DAF",
"DES",
"DEQ",
"DDU",
"DDP"
]
},
"CurrencyCode": {
"type": "string",
"description": "ISO currency code",
"enum": [
"USD",
"EUR",
"JPY"
]
},
"BarCodeType": {
"type": "string",
"enum": [
"GTIN-12",
"GTIN-13",
"GTIN-14",
"PartNumber",
"ISBN",
"UPC",
"EAN-13"
]
},
"TermUOM": {
"type": "string",
"enum": [
"Days",
"Months",
"Years"
]
},
"Barcode": {
"type": "object",
"additionalProperties": false,
"properties": {
"ID": {
"type": "string"
},
"Type": {
"$ref": "#/definitions/BarCodeType"
}
},
"required": []
},
"Version": {
"type": "number",
"enum": [
2020.1
]
}
},
"$comment": "TBD"
}https://standards.namm.org/schema/2020.1/common.json (1:2)
References
Documentation for Purchase Order
