JSON Schema Definition 'Party'

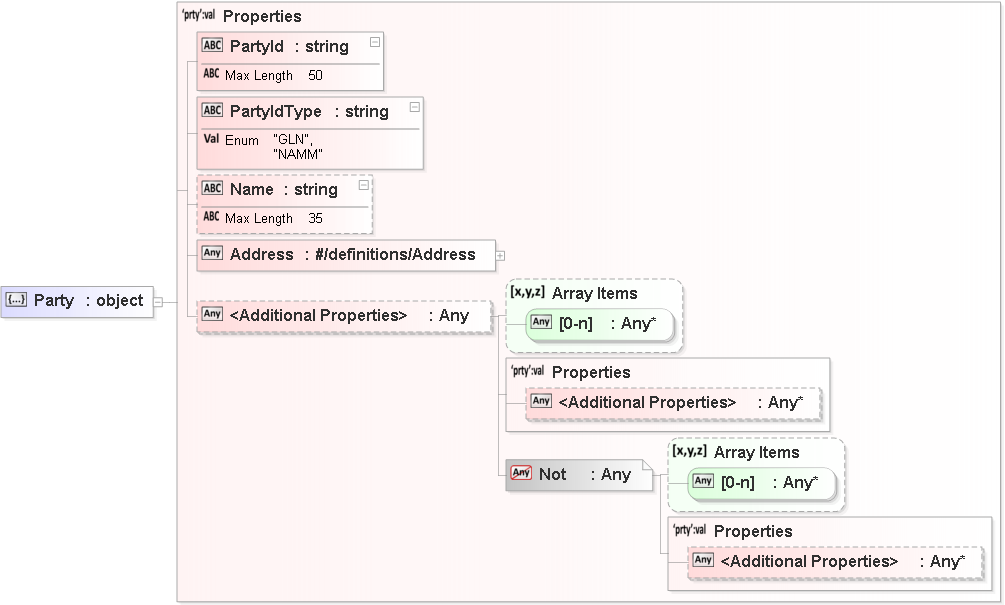

Diagram

Value

Object

Properties

Property Name	Type	Description
PartyId	string	A String value where *length <= 50*
PartyIdType	string	PartyIdType (common.json)
Name	string	A String value where *length <= 35*
Address	object	Address (common.json)
Additional Properties	Type	Description
Any Property	any	/definitions/Party/additionalProperties (common.json)

Source

"Party": {
    "type": "object",
    "additionalProperties": {
        "not": {}
    },
    "properties": {
        "PartyId": {
            "type": "string",
            "maxLength": 50
        },
        "PartyIdType": {
            "type": "string",
            "enum": [
                "GLN",
                "NAMM"
            ]
        },
        "Name": {
            "type": "string",
            "maxLength": 35
        },
        "Address": {
            "$ref": "#/definitions/Address"
        }
    },
    "required": [
        "PartyId",
        "PartyIdType",
        "Address"
    ]
}

https://standards.namm.org/schema/2020.1/common.json (58:10)

References

Documentation for Purchase Order
